Chunk Allocation and Reallocation

The bins exist to reuse chunks. Here we'll look at how that's done.

Fastbins

Fastbins are probably the easiest to explain as they are sorted by size.
As mentioned, the last chunk to be placed in the bin is the first chunk reallocated. We can see this behaviour in a simple C program.
#include <stdio.h>
#include <stdlib.h>
int main() {
char *a = malloc(20);
char *b = malloc(20);
char *c = malloc(20);
printf("a: %p\nb: %p\nc: %p\n", a, b, c);
puts("Freeing...");
free(a);
free(b);
free(c);
puts("Allocating...");
char *d = malloc(20);
char *e = malloc(20);
char *f = malloc(20);
printf("d: %p\ne: %p\nf: %p\n", d, e, f);
}
And we get:
a: 0x2292010
b: 0x2292030
c: 0x2292050
Freeing...
Allocating...
d: 0x2292050
e: 0x2292030
f: 0x2292010

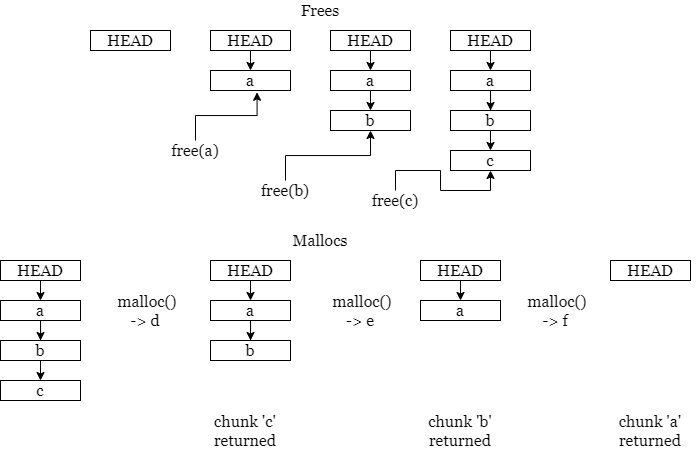

You can see the behaviour here. This specific fastbin progresses as follows:
As you can see, the chunk a gets reassigned to chunk f, b to e and c to d.
So, if we free() a chunk, there's a good chance our next malloc() - if it's of the same size - will use the same chunk.

Unsorted Bins

When a non-fast chunk is freed, it gets put into the Unsorted Bin. When new chunks are requested, glibc looks at the unsorted bin.
  • If the requested size is equal to the size of the chunk in the bin, return the chunk
  • If it's smaller, split the chunk in the bin in two and return a portion of the correct size
